AMD · 2009

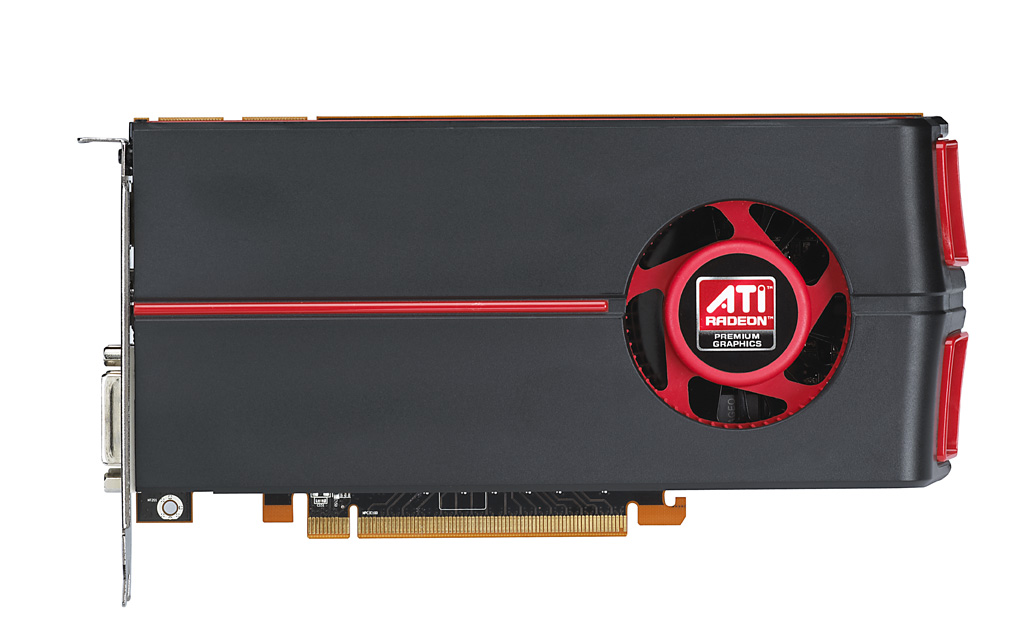

AMD Radeon HD 5770
The AMD Radeon HD 5770 is a graphics card released in 2009, based on the TeraScale 2 architecture and Juniper XT chip.
The AMD Radeon HD 5770 is a graphics card released on October 13, 2009, with a launch MSRP of 159 USD. It is built on the TeraScale 2 architecture using the Juniper XT GPU fabricated on a 40 nm process node. The card features 800 shading units, a base clock of 850 MHz, and 1 GB of GDDR5 memory on a 128-bit bus, providing a memory bandwidth of 76.8 GB/s. It has a board power (TDP) of 108 W and connects via PCIe 2.1 x16. Display outputs include DVI, HDMI, and DisplayPort. It supports DirectX 11.0 and OpenGL 4.5.
Specifications
| Architecture unverified | TeraScale 2 |
|---|---|
| GPU chip unverified | Juniper XT |
| Process node unverified | 40 nm |
| Shading units | 800 |
| Base clock | 850 MHz |
| Memory size unverified | 1 GB |
| Memory type unverified | GDDR5 |
| Memory bus unverified | 128 bit |
| Memory bandwidth unverified | 76.8 GB/s |
| Board power (TDP) | 108 W |
| Bus interface unverified | PCIe 2.1 x16 |
| Display outputs unverified | DVI, HDMI, DisplayPort |
| DirectX support unverified | 11.0 |
| OpenGL support unverified | 4.5 |
| Release date unverified | 2009-10-13 |
| Release year unverified | 2009 |
| Launch MSRP unverified | 159 USD |
