NVIDIA · 2020

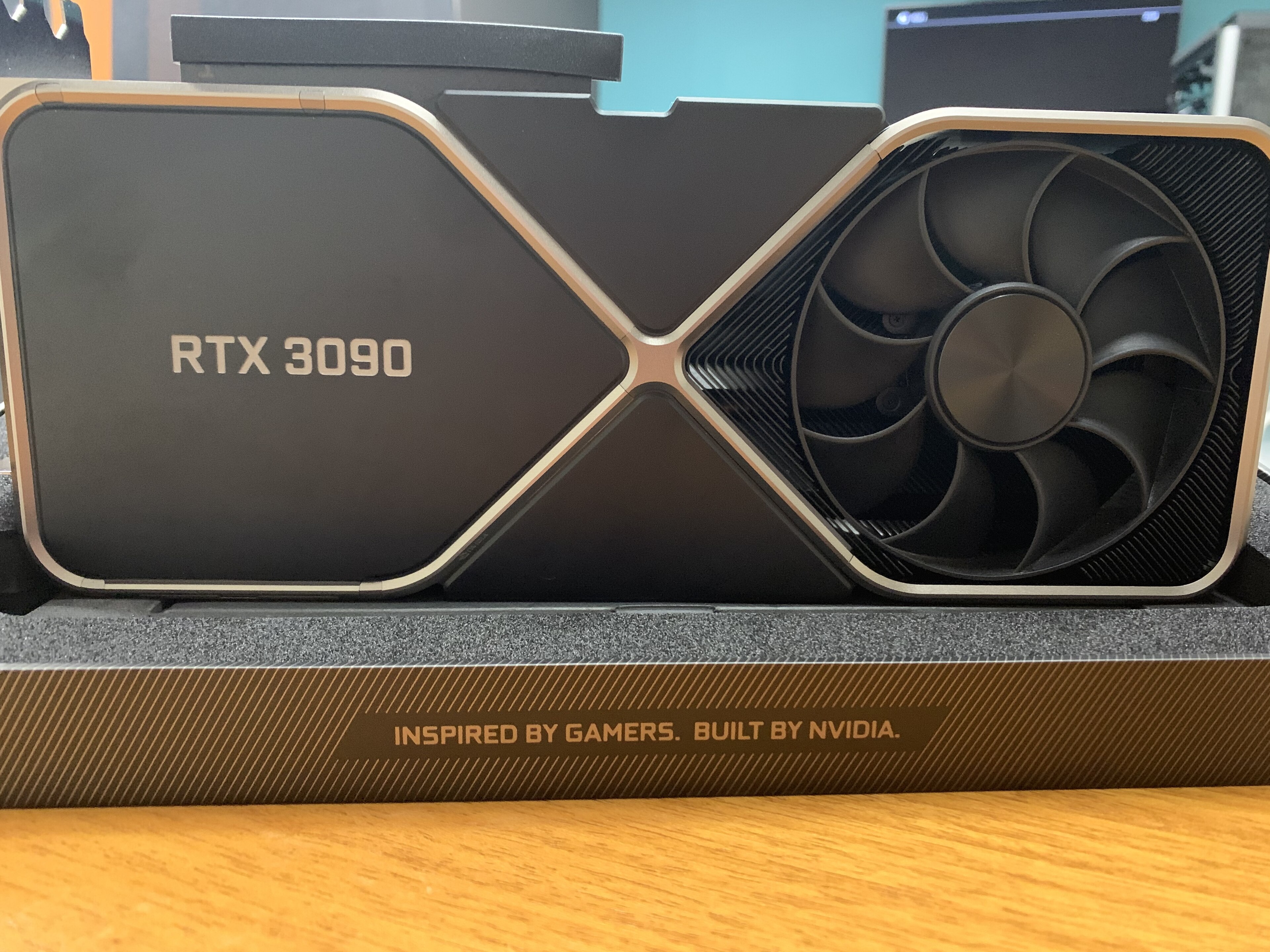

NVIDIA GeForce RTX3090
The NVIDIA GeForce RTX 3090 is a high-end graphics card released in 2020, based on the Ampere architecture and featuring 24 GB GDDR6X memory.
The NVIDIA GeForce RTX 3090 is a flagship graphics card launched on September 24, 2020, with a launch MSRP of $1499 USD. It is built on the Ampere architecture using an 8 nm process node and features either a GA102-250 or GA102-300 GPU chip. The card includes 10496 shading units, 82 ray tracing cores, and 328 Tensor/AI cores, with a base clock of 1395 MHz and a boost clock of 1695 MHz. It comes with 24 GB of GDDR6X memory on a 384-bit bus, providing a memory bandwidth of 936 GB/s. The RTX 3090 has a board power (TDP) of 350 W and requires a single 12-pin power connector. It supports PCIe 4.0 x16 interface and offers display outputs including HDMI 2.1 and DisplayPort 1.4a. The card supports DirectX 12 Ultimate, Vulkan 1.3, and OpenGL 4.6. It succeeded the GeForce RTX 2080 Ti and was succeeded by the GeForce RTX 4090.
Specifications
| Architecture unverified | Ampere |
|---|---|
| GPU chip unverified | GA102-250, GA102-300 |
| Process node unverified | 8 nm |
| Shading units unverified | 10496 |
| Ray tracing cores unverified | 82 |
| Tensor / AI cores unverified | 328 |
| Base clock unverified | 1395 MHz |
| Boost clock unverified | 1695 MHz |
| Memory size unverified | 24 GB |
| Memory type unverified | GDDR6X |
| Memory bus unverified | 384 bit |
| Memory bandwidth unverified | 936 GB/s |
| Board power (TDP) unverified | 350 W |
| Power connectors unverified | 1x 12-pin |
| Bus interface unverified | PCIe 4.0 x16 |
| Display outputs unverified | HDMI 2.1, DisplayPort 1.4a |
| DirectX support unverified | 12 Ultimate |
| Vulkan support unverified | 1.3 |
| OpenGL support unverified | 4.6 |
| Release date unverified | 2020-09-24 |
| Release year unverified | 2020 |
| Launch MSRP unverified | 1499 USD |
| Successor unverified | GeForce RTX 4090 |
| Predecessor unverified | GeForce RTX 2080 Ti |
