Fractal Design
Define 7 Nano

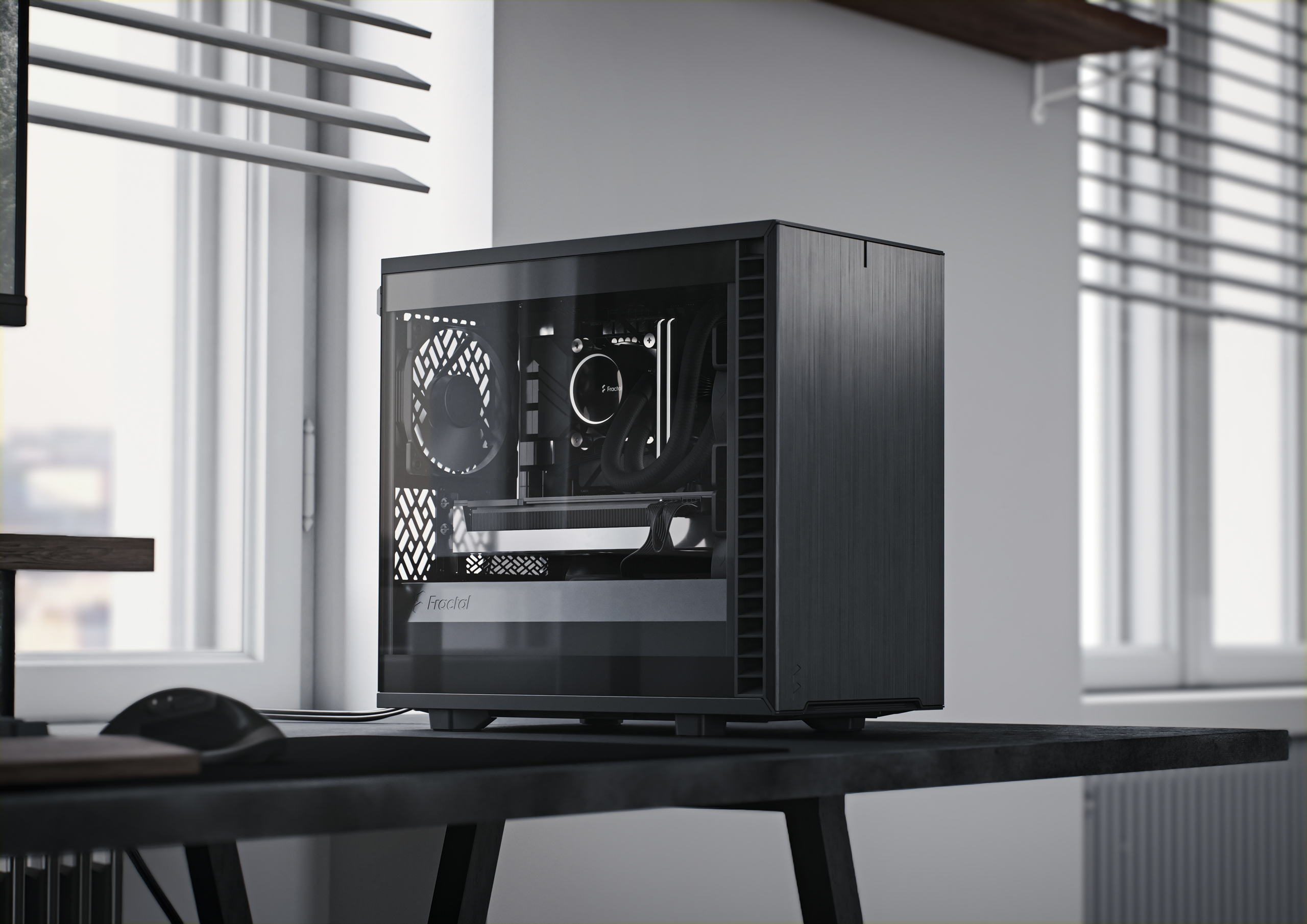

The Define 7 Nano is a compact Mini ITX case from Fractal Design, supporting Mini ITX and Mini-DTX motherboards with a focus on noise dampening and versatility.
The Define 7 Nano is a Mini ITX case by Fractal Design, measuring 399 x 205 x 361 mm and weighing 7.1 kg. It supports Mini ITX and Mini-DTX motherboards, with two expansion slots. The case features one 3.5" and three 2.5" drive bays, a maximum GPU length of 306 mm, and a maximum CPU cooler height of 167 mm. Front I/O includes one USB 3.2 Gen 2x2 Type-C, two USB 3.0, two USB 2.0, and audio jacks. It comes pre-installed with one Dynamic X2 GP-14 fan at the front and one Dynamic X2 GP-12 at the rear. The side panel is available in industrial sound-damped steel (Solid) or tinted glass (TG).
Specifications
| Supported motherboard form factors | Mini ITX, Mini-DTX |
|---|---|
| Case size | Mini ITX |
| Dimensions (HxWxD) | 399 x 205 x 361 mm |
| Weight | 7.1 kg |
| Drive bays | 1x 3.5", 3x 2.5" |
| Expansion slots | 2 |
| Max GPU length | 306 mm |
| Max CPU cooler height | 167 mm |
| Front I/O | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio |
| Pre-installed fans | 1x Dynamic X2 GP-14 (front), 1x Dynamic X2 GP-12 (rear) |
| Side panel material | Industrial sound-damped steel (Solid) or Tinted Glass (TG) |
