Fractal Design · 2020
Define 7

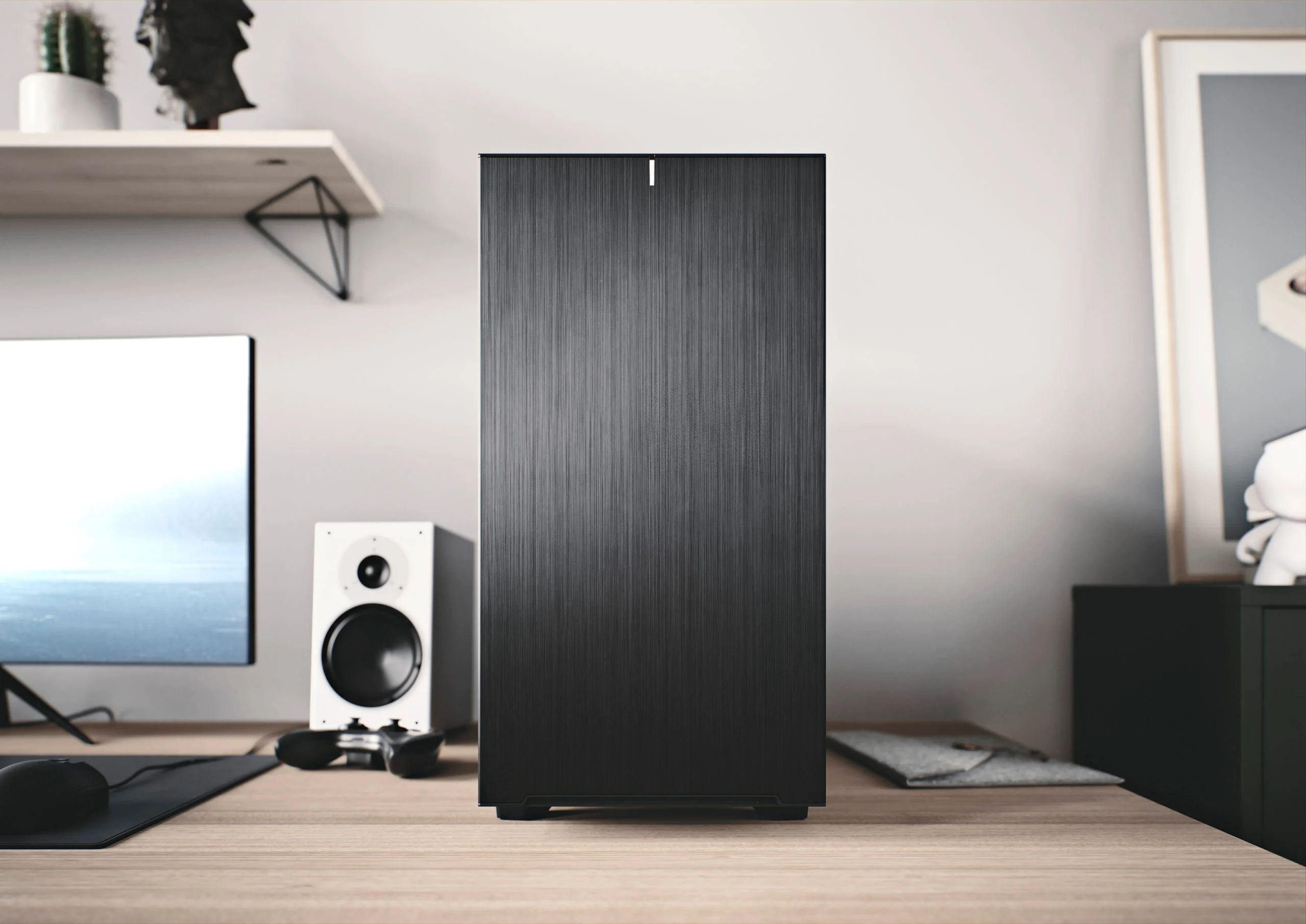

The Define 7 is a mid-tower case from Fractal Design, released in 2020, supporting E-ATX, ATX, mATX, and mITX motherboards.
The Define 7 is a mid-tower case by Fractal Design, released in 2020. It supports motherboard form factors from E-ATX (max 285 mm) down to mITX. The case measures 547 x 240 x 475 mm and weighs 13.49 kg. It offers 9 expansion slots, a maximum GPU length of 470 mm, and a maximum CPU cooler height of 185 mm. Drive bays include 6 universal brackets (14 positions), 2 dedicated SSD brackets (4 positions), and one 5.25" bay. Front I/O consists of one USB 3.2 Gen 2x2 Type-C (20 Gbps), two USB 3.0, two USB 2.0, audio I/O, power button, and reset button. Pre-installed fans are two Dynamic X2 GP-14 at the front and one at the rear. Side panels are available in industrial sound-damped steel or tempered glass.
Specifications
| Supported motherboard form factors | E-ATX (max 285 mm), ATX, mATX, mITX |
|---|---|
| Case size | Mid Tower |
| Dimensions (HxWxD) | 547 x 240 x 475 mm |
| Weight | 13.49 kg |
| Drive bays | 6 universal brackets (14 positions), 2 dedicated SSD brackets (4 positions), 1 x 5.25" |
| Expansion slots | 9 |
| Max GPU length | 470 mm |
| Max CPU cooler height | 185 mm |
| Front I/O | 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Pre-installed fans | 2 x Dynamic X2 GP-14 (front), 1 x Dynamic X2 GP-14 (rear) |
| Side panel material | Industrial sound-damped steel or Tempered Glass |
| Release year | 2020 |
