Fractal Design · 2018

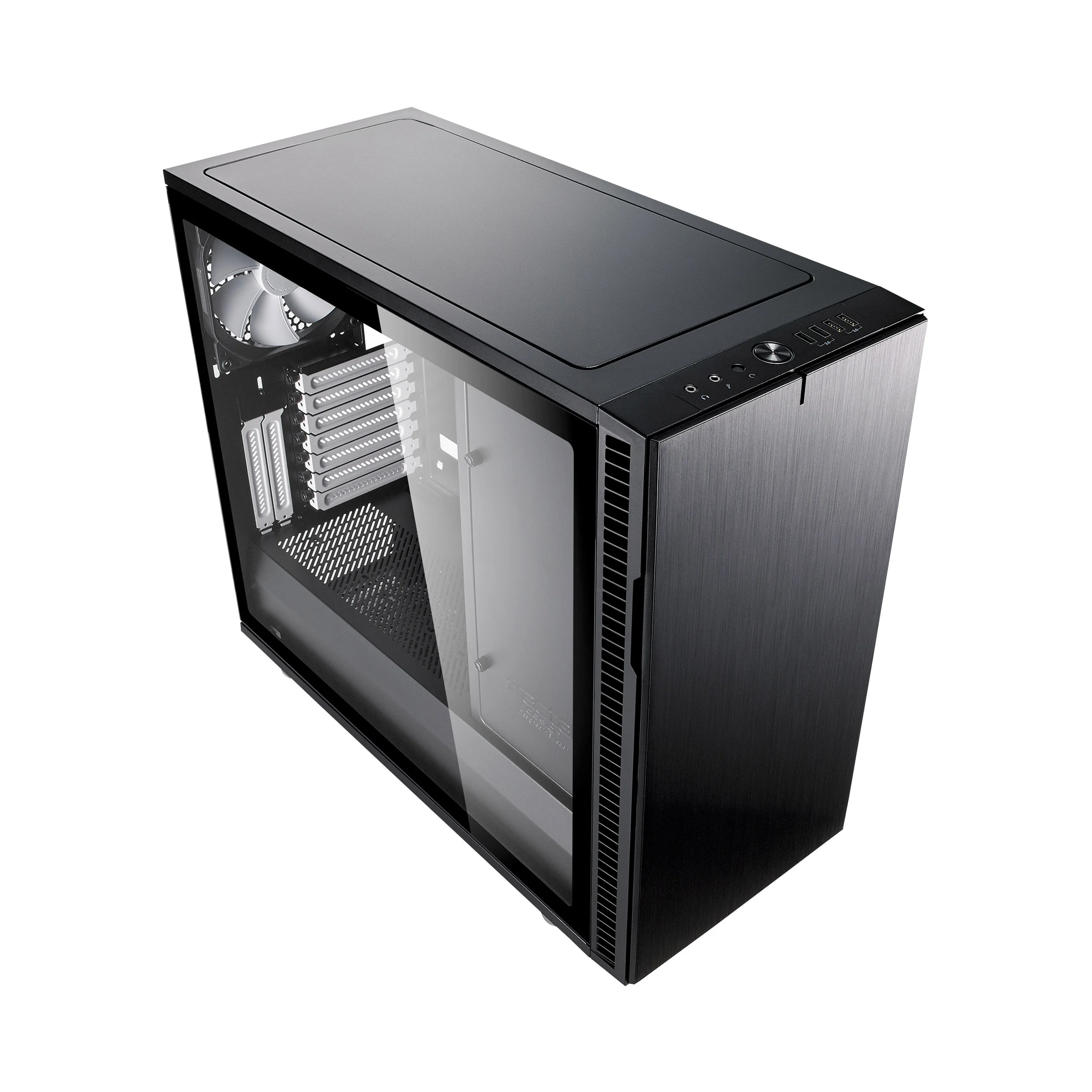

Define R6 Tempered Glass
The Define R6 Tempered Glass is a mid-tower case from Fractal Design, released in 2018 as an update to the Define R5.
The Define R6 Tempered Glass is a mid-tower case supporting eATX (up to 285 mm wide), ATX, mATX, and ITX motherboards. It measures 543 x 233 x 465 mm and weighs 12.4 kg. The case features six 3.5"/2.5" universal drive bays, two dedicated 2.5" bays, and one 5.25" bay. It has seven expansion slots, supports GPUs up to 440 mm, and CPU coolers up to 185 mm. Front I/O includes two USB 3.0 and two USB 2.0 ports. Three pre-installed Dynamic X2 GP-14 140 mm fans (two front, one rear) provide airflow. The side panel is tempered glass. Released in 2018, it is the successor to the Define R5.
Specifications
| Supported motherboard form factors | eATX (up to 285 mm wide), ATX, mATX, ITX |
|---|---|
| Case size | Mid Tower |
| Dimensions (HxWxD) | 543 x 233 x 465 |
| Weight | 12.4 kg |
| Drive bays | 6x 3.5"/2.5" universal, 2x 2.5" dedicated, 1x 5.25" |
| Expansion slots | 7 |
| Max GPU length | 440 mm |
| Max CPU cooler height | 185 mm |
| Front I/O | 2x USB 3.0, 2x USB 2.0 |
| Pre-installed fans | 2x Dynamic X2 GP-14 140 mm front, 1x Dynamic X2 GP-14 140 mm rear |
| Side panel material | Tempered Glass |
| Release date | 2018 |
| Release year | 2018 |
| Predecessor | Define R5 |
