Fractal Design · 2018

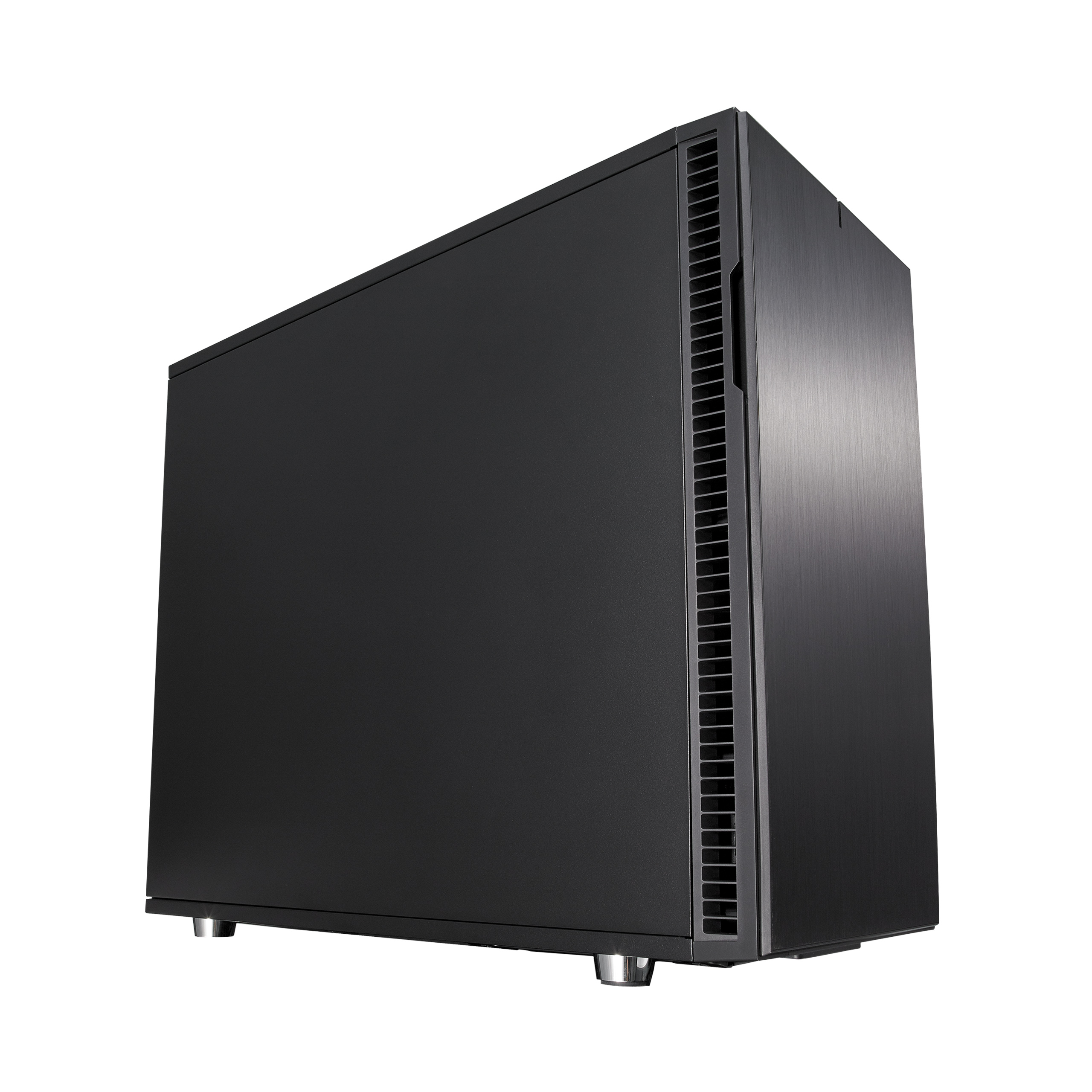

Define R6
The Define R6 is a mid-tower case from Fractal Design, released in 2018, featuring sound-dampened steel panels and support for up to eATX motherboards.
The Define R6 is a mid-tower computer case released by Fractal Design in 2018. It supports motherboard form factors from ITX up to eATX (up to 285 mm wide). The case measures 543 x 233 x 465 mm and weighs 12.4 kg. It offers six universal 3.5"/2.5" drive bays, two dedicated 2.5" bays, and one 5.25" bay. Expansion slots total nine, with a maximum GPU length of 440 mm and CPU cooler height of 185 mm. Front I/O includes two USB 3.0 and two USB 2.0 ports. Pre-installed fans are three Dynamic X2 GP-14 140 mm units (two front, one rear). The side panels are made of industrial sound-dampened steel. Additional features include a Nexus+ Smart Hub, ModuVent technology, a reversible front door, support for vertical GPU mounting (Flex VRC-25 sold separately), and USB-C upgrade compatibility (Connect D1 sold separately).
Specifications
| Supported motherboard form factors | eATX (up to 285 mm wide), ATX, mATX, ITX |
|---|---|
| Case size | Mid Tower |
| Dimensions (HxWxD) | 543 x 233 x 465 |
| Weight | 12.4 kg |
| Drive bays | 6x 3.5"/2.5" universal, 2x 2.5" dedicated, 1x 5.25" |
| Expansion slots | 9 |
| Max GPU length | 440 mm |
| Max CPU cooler height | 185 mm |
| Front I/O | 2x USB 3.0, 2x USB 2.0 |
| Pre-installed fans | 2x Dynamic X2 GP-14 140 mm front, 1x Dynamic X2 GP-14 140 mm rear |
| Side panel material | Industrial sound-dampened steel |
| Release date | 2018 |
| Release year | 2018 |
| Notes | Includes Nexus+ Smart Hub, ModuVent technology, reversible front door, vertical GPU mount support (Flex VRC-25 sold separately), USB-C upgrade kit compatible (Connect D1 sold separately) |
