Fractal Design
Meshify 2 Compact RGB

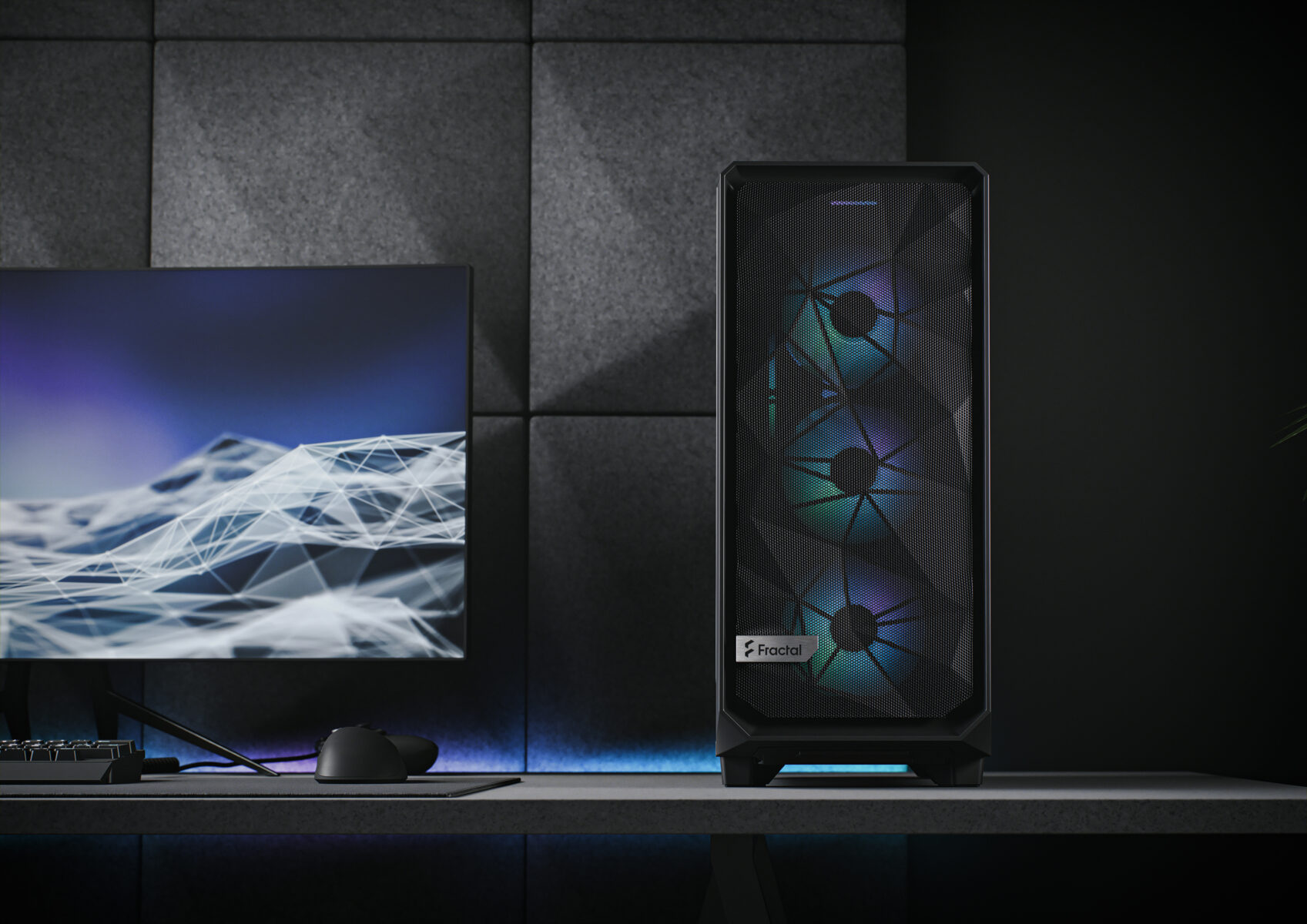

The Meshify 2 Compact RGB is a mid-tower case by Fractal Design supporting ATX, mATX, and Mini-ITX motherboards with a tempered glass side panel.
The Meshify 2 Compact RGB is a mid-tower case from Fractal Design, designed for ATX, mATX, and Mini-ITX motherboards. It measures 424 x 210 x 475 mm and weighs 8.5 kg. The case features a tempered glass left side panel and a steel right side panel. It includes 7 expansion slots, supports GPUs up to 345 mm, and CPU coolers up to 169 mm in height. Drive bays include 2x 3.5"/2.5" universal and 4x 2.5" dedicated (2 included). Front I/O offers 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.0, audio, power button, and an RGB control button. It comes with four pre-installed 120 mm Aspect 12 RGB PWM fans: three at the front and one at the rear.
Specifications
| Supported motherboard form factors | ATX, mATX, Mini-ITX |
|---|---|
| Case size | Mid Tower |
| Dimensions (HxWxD) | 424 x 210 x 475 |
| Weight | 8.5 kg |
| Drive bays | 2x 3.5"/2.5" universal, 4x 2.5" dedicated (2 included) |
| Expansion slots | 7 |
| Max GPU length | 345 mm |
| Max CPU cooler height | 169 mm |
| Front I/O | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.0, Audio I/O, Power button, RGB control button |
| Pre-installed fans | 3x 120 mm Aspect 12 RGB PWM front, 1x 120 mm Aspect 12 RGB PWM rear |
| Side panel material | Tempered glass left, Steel right |
