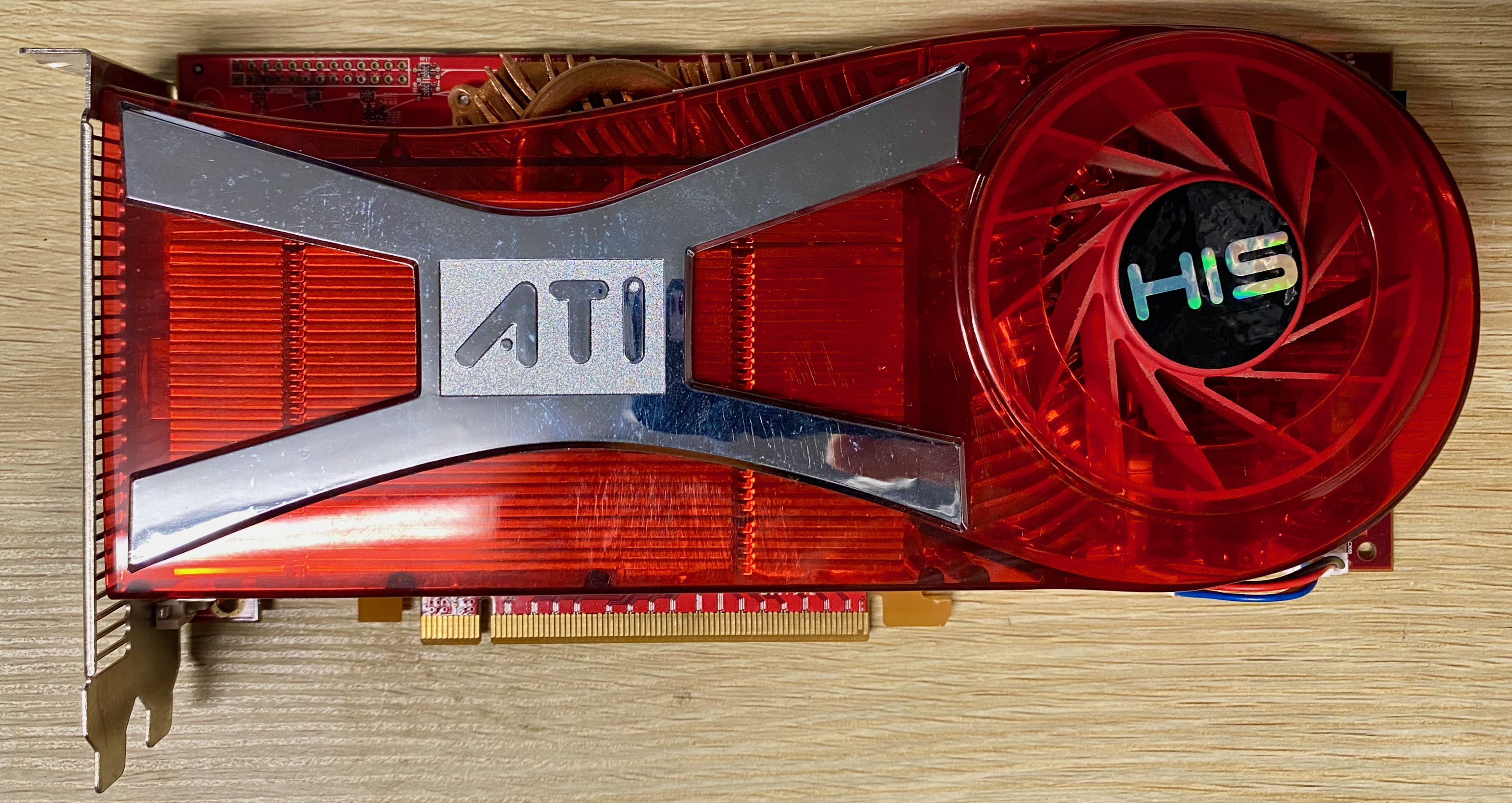

AMD R520
The AMD R520 is a graphics card released in 2005, based on the Radeon X1000 architecture and built on a 90 nm process.
The AMD R520 is a graphics card from 2005, part of the Radeon X1000 series. It features the R520 GPU chip fabricated on a 90 nm process node. The card includes 16 shading units and operates at a base clock of 600 MHz. It is equipped with 0.5 GB of GDDR3 memory on a 256-bit bus, providing a memory bandwidth of 46.08 GB/s. The R520 has a TDP of 113 W and connects via a PCIe ×16 interface. It supports DirectX 9.0c and OpenGL 2.1. The card was released on December 20, 2005.
Specifications
| Architecture unverified | Radeon X1000 |
|---|---|
| GPU chip unverified | R520 |
| Process node unverified | 90 nm |
| Shading units unverified | 16 |
| Base clock unverified | 600 MHz |
| Memory size unverified | 0.5 GB |
| Memory type unverified | GDDR3 |
| Memory bus unverified | 256 bit |
| Memory bandwidth unverified | 46.08 GB/s |
| Board power (TDP) unverified | 113 W |
| Bus interface unverified | PCIe ×16 |
| DirectX support unverified | 9.0c |
| OpenGL support unverified | 2.1 |
| Release date unverified | 2005-12-20 |
| Release year unverified | 2005 |
