Asus · 2017

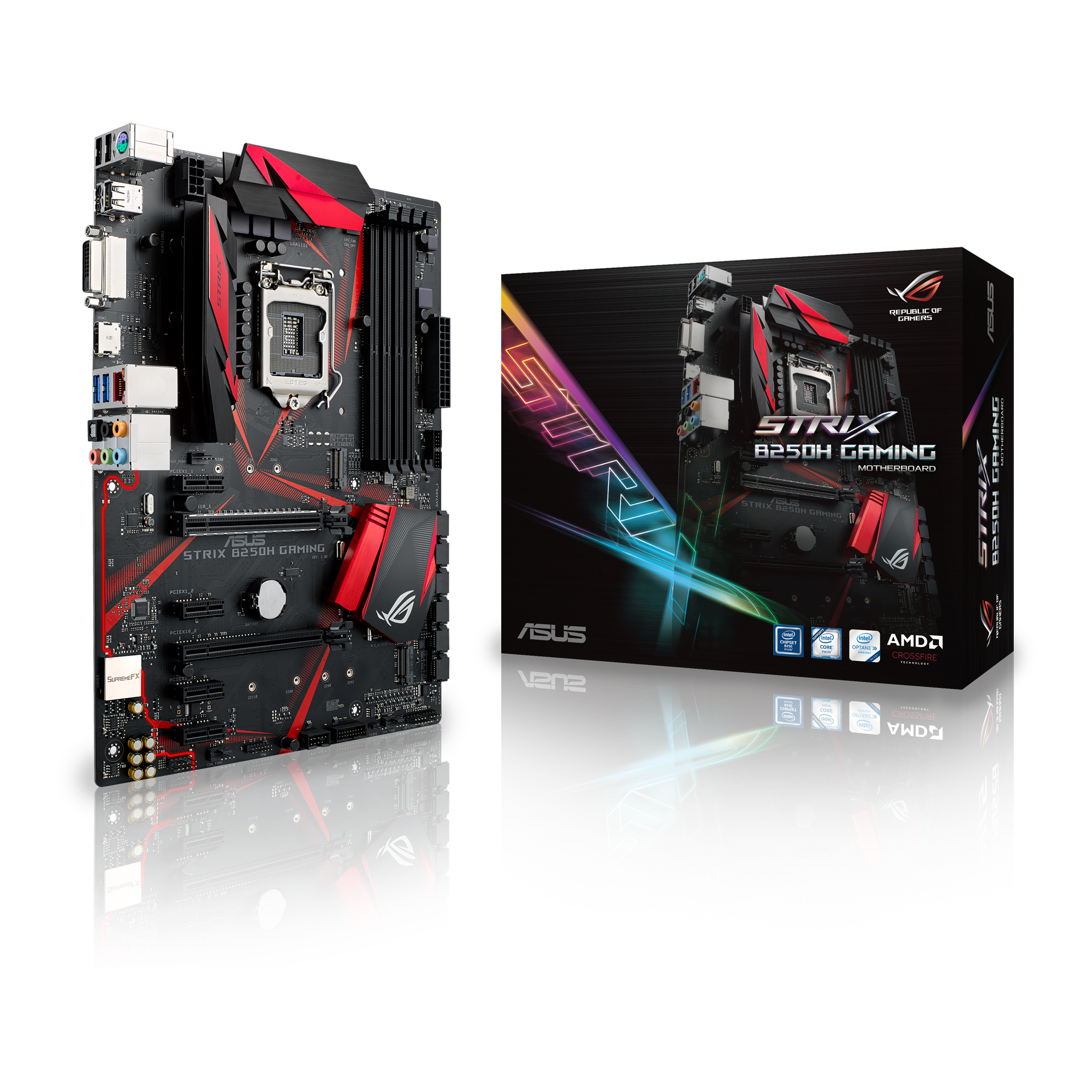

Asus ROG Strix B250H Gaming
The Asus ROG Strix B250H Gaming is an ATX motherboard with Intel B250 chipset and LGA 1151 socket, released in 2017.
The Asus ROG Strix B250H Gaming is an ATX motherboard based on the Intel B250 chipset, featuring an LGA 1151 socket for 7th and 6th generation Intel Core processors. It supports up to 64 GB of DDR4 memory across four slots with dual-channel architecture. Expansion includes one PCIe 3.0 x16 slot (x16), one PCIe 3.0 x16 slot (x4), and four PCIe 3.0 x1 slots. Storage options include two M.2 slots and six SATA ports. Rear I/O provides four USB 2.0 and two USB 3.0 ports. Networking is handled by an Intel I219-V Gigabit LAN controller, and audio by the SupremeFX S1220A codec. The motherboard does not include built-in Wi-Fi.
Specifications
| Chipset | Intel B250 |
|---|---|
| CPU socket | LGA 1151 |
| Form factor | ATX |
| Memory slots | 4 |
| Memory type | DDR4 |
| Max memory unverified | 64 GB |
| Memory channels | 2 |
| PCIe slots | 1x PCIe 3.0 x16 (x16), 1x PCIe 3.0 x16 (x4), 4x PCIe 3.0 x1 |
| M.2 slots | 2 |
| SATA ports | 6 |
| USB ports (rear) | 4x USB 2.0, 2x USB 3.0 |
| Ethernet | Intel I219-V Gigabit LAN |
| Wi-Fi | No |
| Audio codec | SupremeFX S1220A |
| Release year unverified | 2017 |
