ASUS · 2017
Asus ROG Strix Z270E Gaming

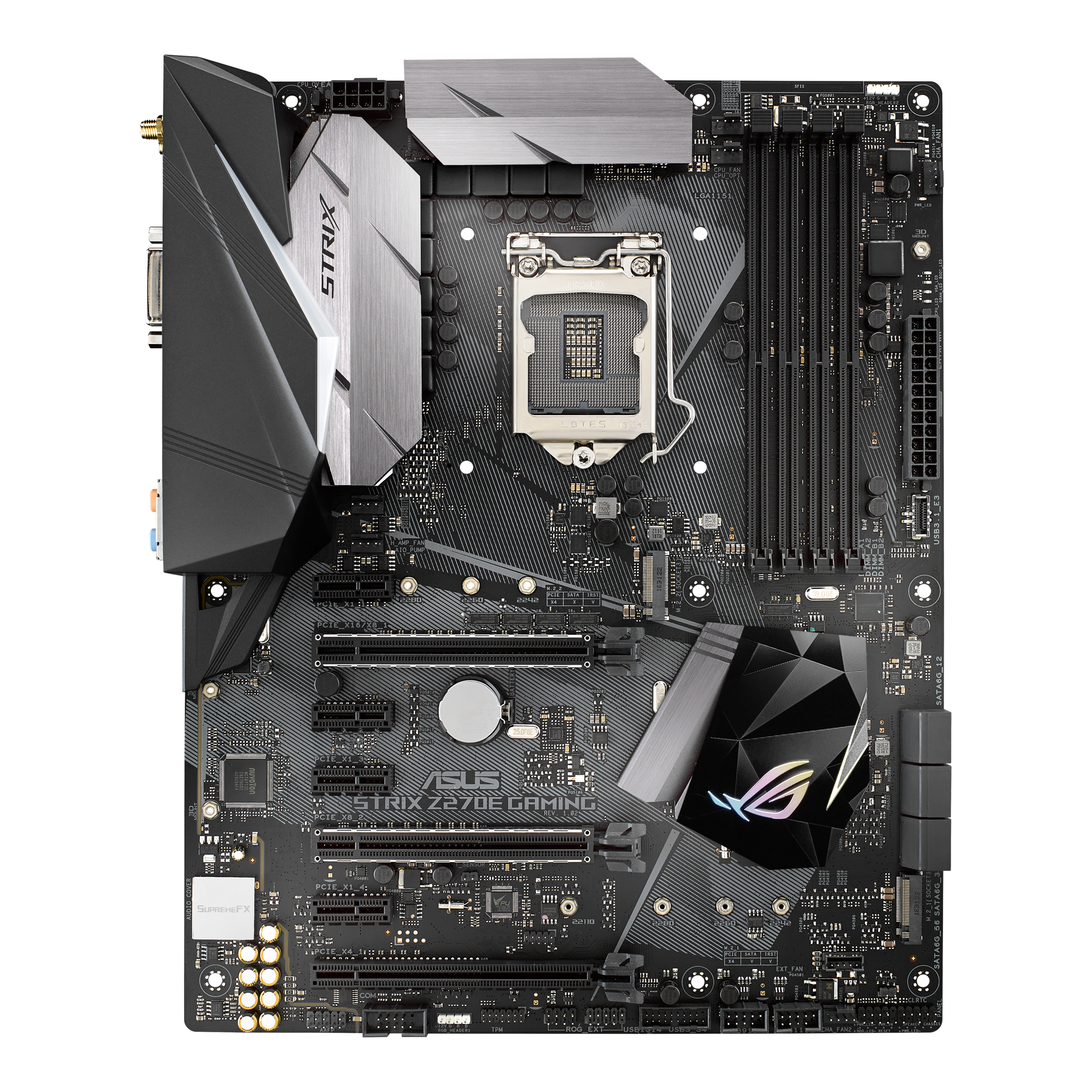

The Asus ROG Strix Z270E Gaming is an ATX motherboard released in 2017, featuring the Intel Z270 chipset and LGA 1151 socket for 6th/7th Gen Intel Core processors.
The Asus ROG Strix Z270E Gaming is an ATX motherboard built on the Intel Z270 chipset, supporting LGA 1151 processors. It has four DDR4 memory slots with dual-channel support, up to 64 GB. Expansion includes two PCIe 3.0 x16 slots (x16 or x8/x8), one PCIe 3.0 x16 (x4), and four PCIe 3.0 x1 slots. Storage options include two M.2 slots and six SATA ports. Rear I/O provides USB 3.1 Type-A and Type-C ports, Intel Gigabit LAN, and 802.11ac Wi-Fi. Audio is handled by the Realtek ALC1220 codec. It succeeded the Pro Gaming series.
Specifications
| Chipset | Intel Z270 |
|---|---|
| CPU socket | LGA 1151 |
| Form factor | ATX |
| Memory slots | 4 |
| Memory type | DDR4 |
| Max memory unverified | 64 GB |
| Memory channels | 2 |
| PCIe slots | 2 x PCIe 3.0 x16 (x16, x8/x8), 1 x PCIe 3.0 x16 (x4), 4 x PCIe 3.0 x1 |
| M.2 slots | 2 |
| SATA ports | 6 |
| USB ports (rear) | USB 3.1 Type-A + Type-C |
| Ethernet | Intel I219-V Gigabit LAN |
| Wi-Fi | 802.11ac Wi-Fi |
| Audio codec unverified | Realtek ALC1220 |
| Release year unverified | 2017 |
| Notes | Successor to Pro Gaming series |
