ASUS

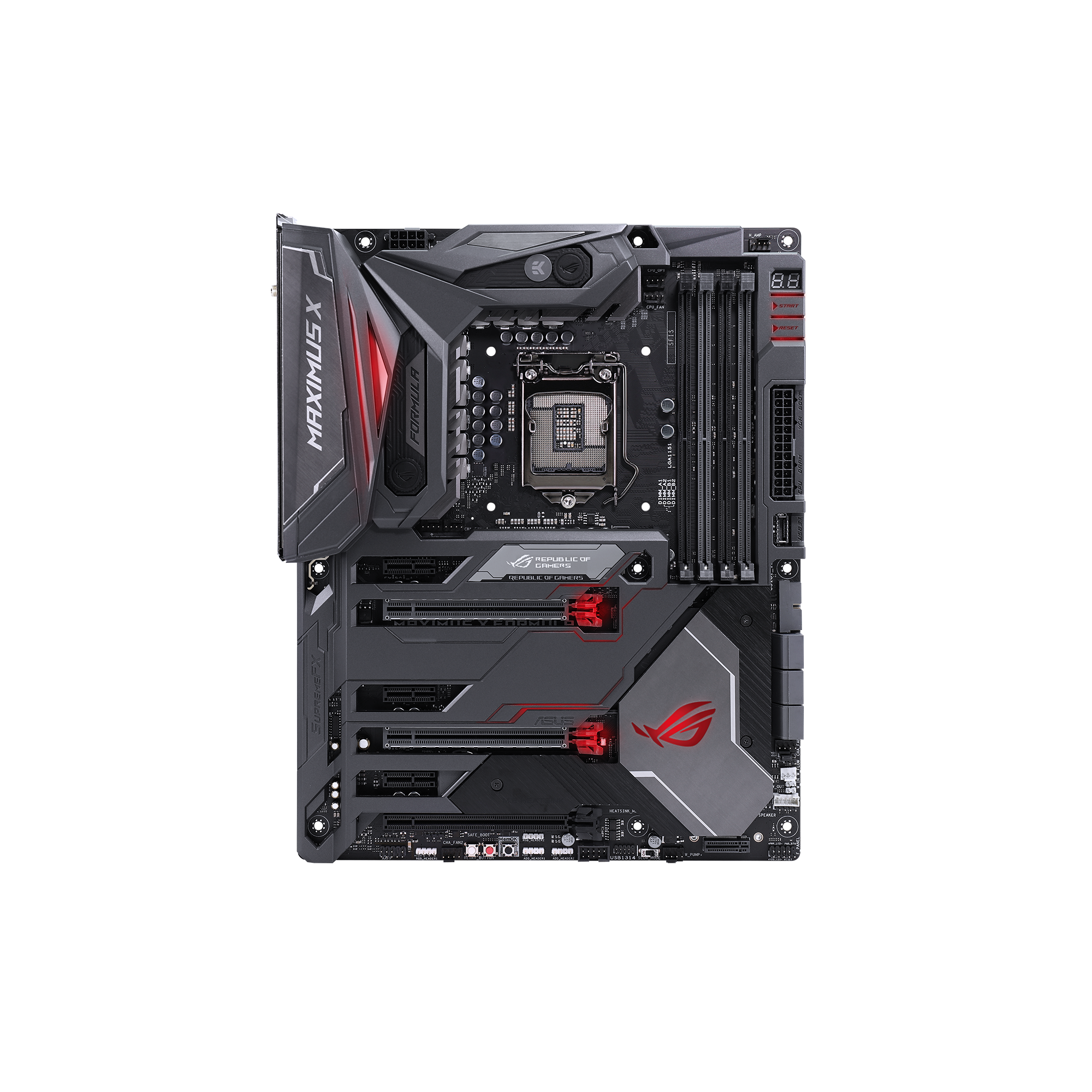

ROG MAXIMUS X FORMULA
The ROG MAXIMUS X FORMULA is an ATX motherboard with Intel Z370 chipset, designed for custom water cooling and featuring CrossChill EK II VRM block.
The ROG MAXIMUS X FORMULA is a high-end ATX motherboard from ASUS, built on the Intel Z370 chipset and LGA 1151 socket. It supports up to 64 GB of DDR4 memory across four slots with dual-channel architecture. Expansion includes two PCIe 3.0 x16 slots (x16 or x8/x8), one PCIe 3.0 x16 (x4 mode), and three PCIe 3.0 x1 slots. Storage options comprise two M.2 slots and six SATA ports. Rear I/O offers two USB 3.1 Gen 2 (Type-A and Type-C), four USB 3.1 Gen 1, and four USB 2.0 ports. Networking is handled by Intel I219V Ethernet and Wi-Fi 802.11 a/b/g/n/ac. Audio features the ROG SupremeFX S1220 codec. The board is designed for hardcore custom water cooling with a CrossChill EK II VRM block, includes a LiveDash OLED 1.3" display, and supports AURA Sync lighting.
Specifications
| Chipset | Intel Z370 |
|---|---|
| CPU socket | LGA 1151 |
| Form factor | ATX |
| Memory slots | 4 |
| Memory type | DDR4 |
| Max memory | 64 GB |
| Memory channels | 2 |
| PCIe slots | 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4), 1 x PCIe 3.0/2.0 x16 (x4 mode, black), 3 x PCIe 3.0/2.0 x1 |
| M.2 slots | 2 |
| SATA ports | 6 |
| USB ports (rear) | 2 x USB 3.1 Gen 2 (Type-A + USB Type-C), 4 x USB 3.1 Gen 1, 4 x USB 2.0 |
| Ethernet | Intel I219V |
| Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac |
| Audio codec | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 |
| Notes | Designed for hardcore custom water cooling, CrossChill EK II VRM block, LiveDash OLED 1.3", AURA Sync |
