Asus · 2018

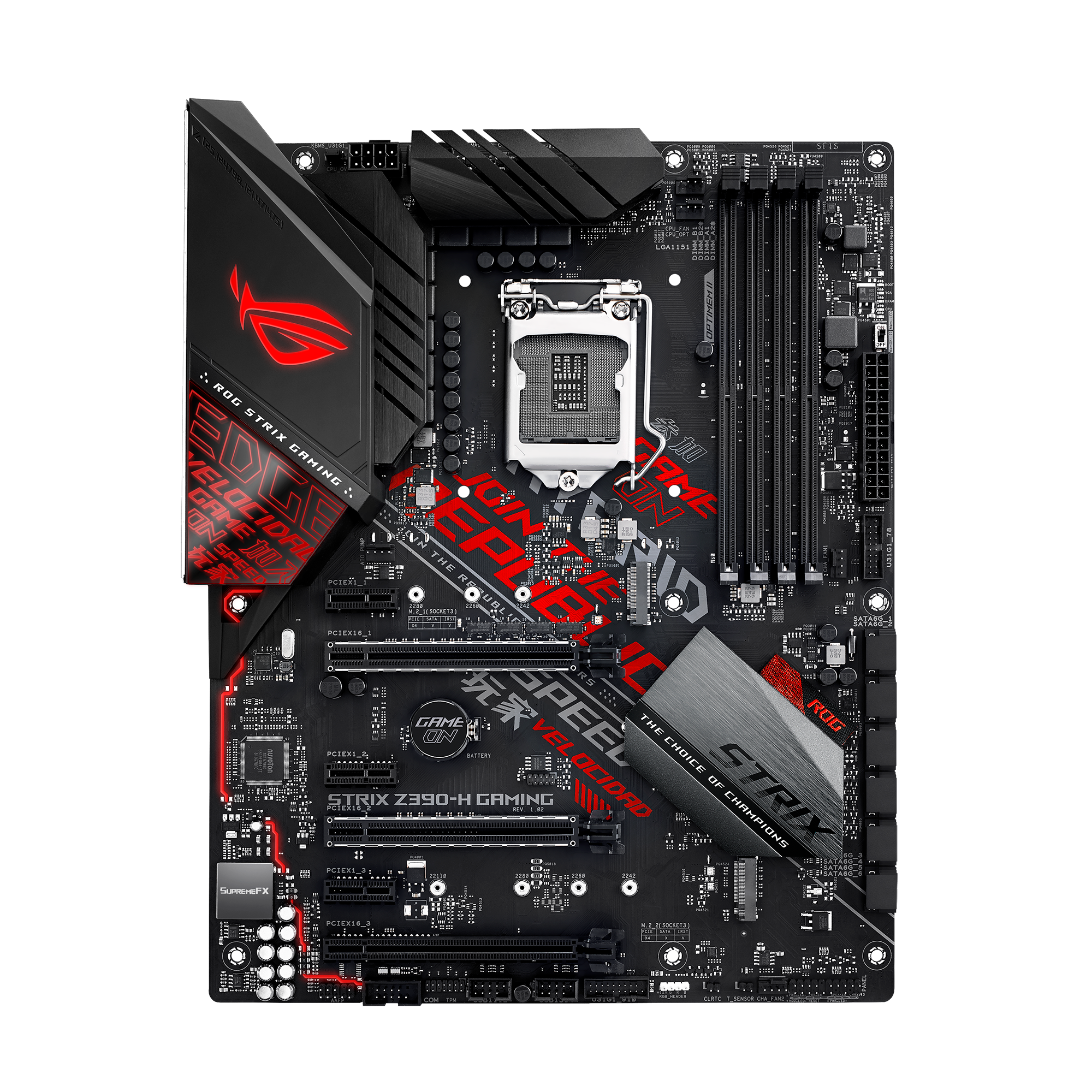

Asus ROG Strix Z390-H Gaming
The Asus ROG Strix Z390-H Gaming is an ATX motherboard released in 2018, featuring the Intel Z390 chipset and LGA 1151 socket for 8th and 9th Gen Intel Core processors.
The Asus ROG Strix Z390-H Gaming is an ATX motherboard released in 2018, built on the Intel Z390 chipset with an LGA 1151 socket. It supports 8th and 9th Gen Intel Core processors. The board has four DDR4 memory slots, supporting up to 64 GB in dual-channel configuration. Expansion includes two PCIe 3.0 x16 slots from the CPU, one PCIe 3.0 x16 slot from the PCH (x2 mode), and three PCIe 3.0 x1 slots. Storage options include two M.2 slots and six SATA ports. Rear I/O offers four USB 3.1 Gen 2 Type-A ports and two USB 3.1 Gen 1 ports, with additional four USB 3.1 Gen 1 via front headers. Networking is handled by an Intel I219-V Gigabit LAN controller, and audio by the SupremeFX S1220A codec.
Specifications
| Chipset | Intel Z390 |
|---|---|
| CPU socket | LGA 1151 |
| Form factor | ATX |
| Memory slots | 4 |
| Memory type | DDR4 |
| Max memory unverified | 64 GB |
| Memory channels | 2 |
| PCIe slots | 2 x PCIe 3.0 x16 (CPU), 1 x PCIe 3.0 x16 (PCH, at x2 mode), 3 x PCIe 3.0 x1 (PCH) |
| M.2 slots | 2 |
| SATA ports | 6 |
| USB ports (rear) | 4 x USB 3.1 Gen 2 (Type-A), 6 x USB 3.1 Gen 1 (4 front, 2 rear?) |
| Ethernet | Intel I219-V Gigabit LAN |
| Audio codec | SupremeFX S1220A |
| Release year unverified | 2018 |
