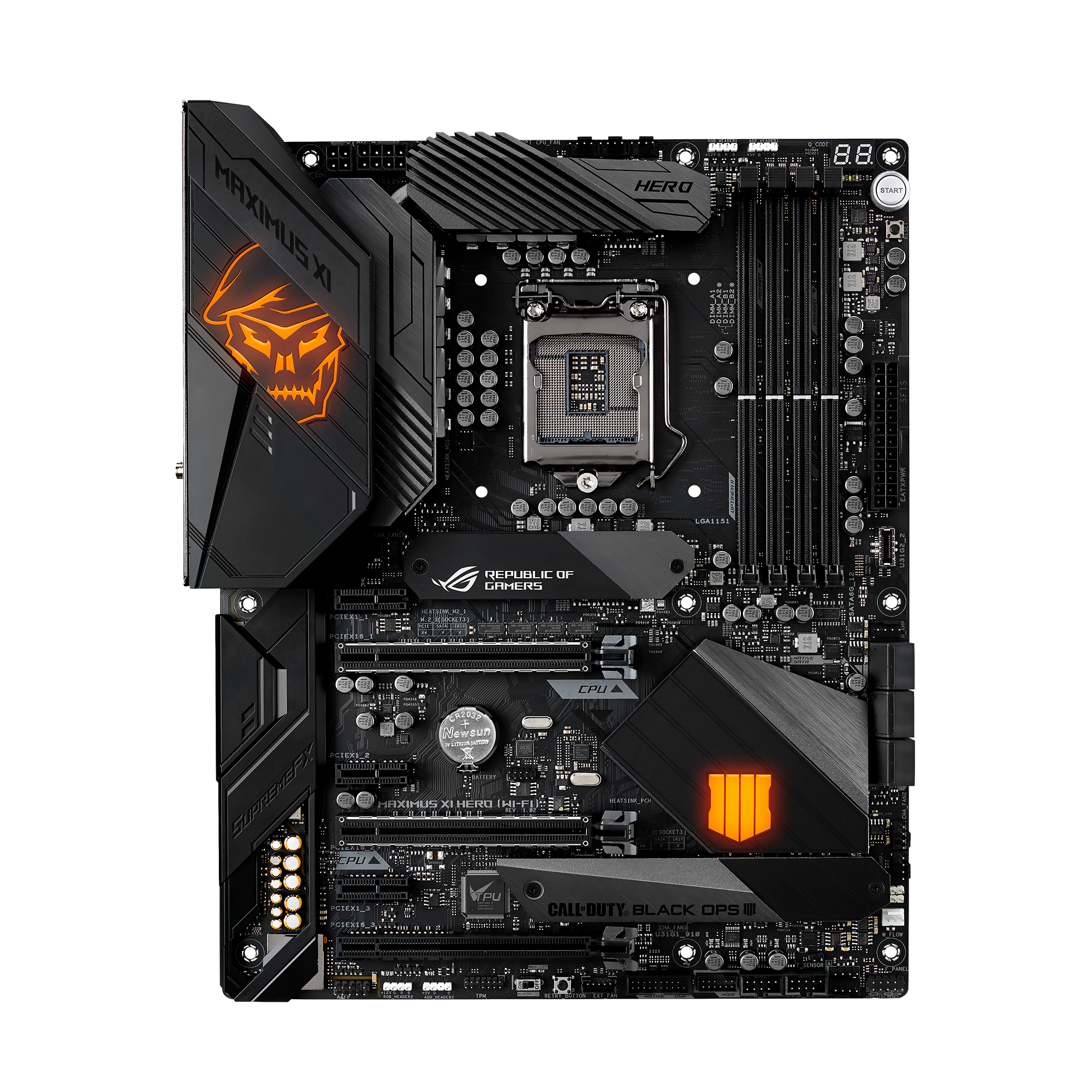

The ROG MAXIMUS XI HERO (WI-FI) Call of Duty - Black Ops 4 Edition is a special edition motherboard based on the Intel Z390 chipset, supporting LGA 1151 socket CPUs. It features an ATX form factor with four DDR4 memory slots supporting up to 64 GB in dual-channel configuration. Expansion includes two PCIe 3.0 x16 slots (x16 or dual x8 or x8/x4/x4), one PCIe 3.0 x16 slot (x4 mode), three PCIe 3.0 x1 slots, two M.2 slots, and six SATA ports. Rear I/O offers four USB 3.1 Gen 2 ports (one Type-C, three Type-A), two USB 3.1 Gen 1 Type-A, and two USB 2.0 ports. Networking is provided by an Intel I219V Gigabit LAN and Intel Wireless-AC 9560 Wi-Fi supporting 802.11ac with MU-MIMO. Audio uses the ROG SupremeFX S1220 codec with ESS ES9023P DAC. The package includes an SLI HB Bridge, Q-Connector, RGB extension cables, and Wi-Fi antennas.

Specifications

Chipset	Intel Z390
CPU socket	LGA 1151
Form factor	ATX
Memory slots	4
Memory type	DDR4
Max memory	64 GB
Memory channels	2
PCIe slots	2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4), 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1
M.2 slots	2
SATA ports	6
USB ports (rear)	4 x USB 3.1 Gen 2 (1 Type-C + 3 Type-A), 2 x USB 3.1 Gen 1 (Type-A), 2 x USB 2.0
Ethernet	Intel I219V, 1 x Gigabit LAN
Wi-Fi	Intel Wireless-AC 9560, Wi-Fi 802.11 a/b/g/n/ac, dual band 2.4/5 GHz, MU-MIMO, HT20/HT40/HT80/HT160
Audio codec	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220, ESS ES9023P
Release year	2018
Notes	Call of Duty: Black Ops 4 Edition; includes SLI HB BRIDGE(2-WAY-M), ROG big sticker, Q-Connector, ROG coaster, Extension Cable for RGB strips, Extension cable for Addressable LED, ASUS 2T2R dual band Wi-Fi moving antennas, 4 x SATA 6Gb/s cable, M.2 Screw Package
