Asus · 2019

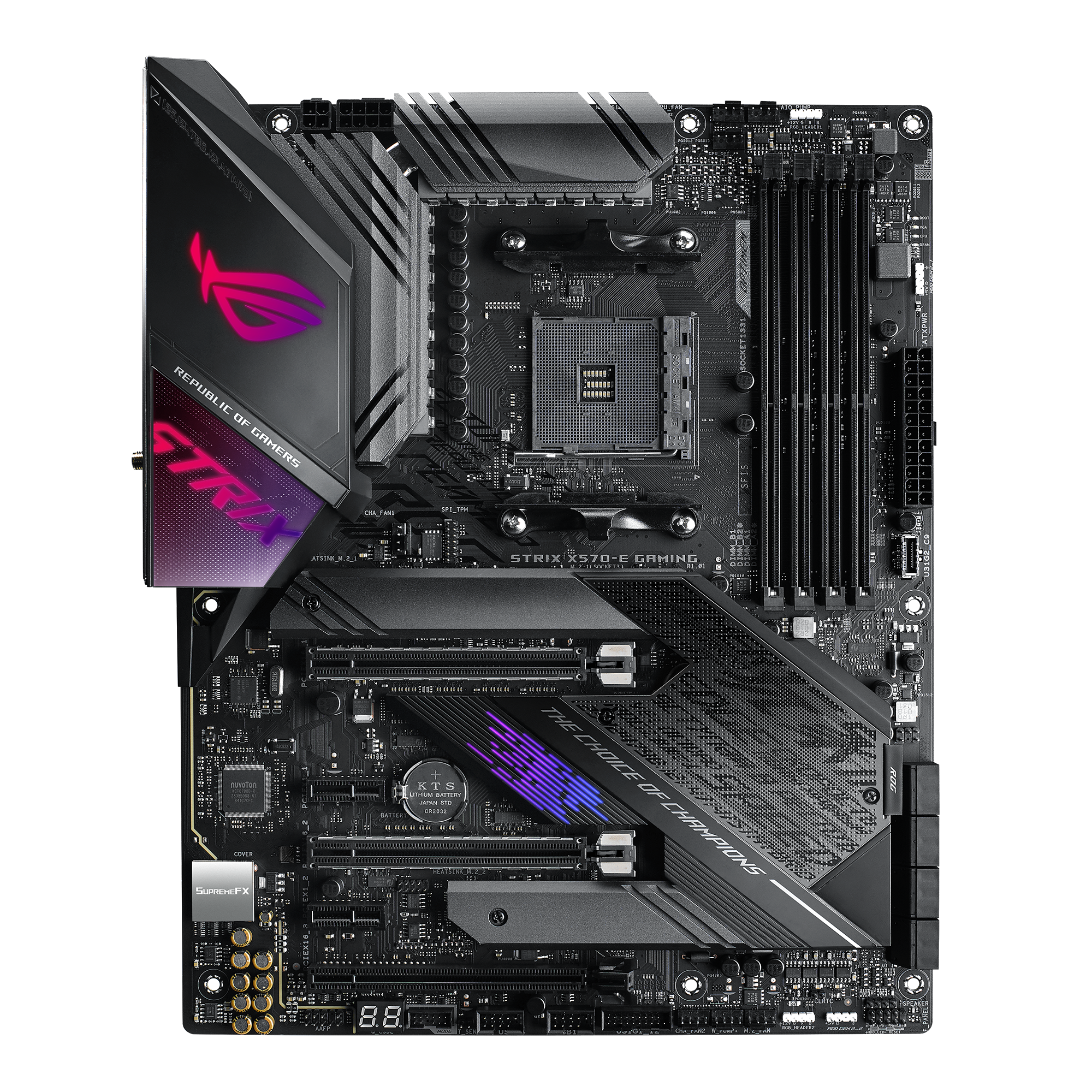

Asus ROG Strix X570-E Gaming
The Asus ROG Strix X570-E Gaming is an ATX motherboard for AMD AM4 CPUs, featuring the X570 chipset and PCIe 4.0 support.
The Asus ROG Strix X570-E Gaming is a motherboard released in 2019, built on the AMD X570 chipset with an AM4 socket. It supports DDR4 memory across four slots, with a maximum capacity of 128 GB in dual-channel configuration. The board offers extensive PCIe 4.0 connectivity: two PCIe 4.0 x16 slots (running at x16 or x8/x8), one PCIe 4.0 x16 slot (x4), and two PCIe 4.0 x1 slots. Storage options include two M.2 slots and eight SATA ports. Rear I/O provides seven USB 3.2 Gen 2 Type-A ports and one USB 3.2 Gen 2 Type-C port. Networking is handled by a 2.5Gbps LAN controller, an Intel Gigabit Ethernet port, and Wi-Fi 6 (802.11ax). Audio is powered by the SupremeFX S1220A codec. The motherboard is designed for high-performance AMD Ryzen processors and supports multi-GPU configurations.
Specifications
| Chipset | AMD X570 |
|---|---|
| CPU socket | AM4 |
| Form factor | ATX |
| Memory slots | 4 |
| Memory type | DDR4 |
| Max memory unverified | 128 GB |
| Memory channels | 2 |
| PCIe slots | 2 x PCIe 4.0 x16 (x16, x8/x8), 1 x PCIe 4.0 x16 (x4), 2 x PCIe 4.0 x1 |
| M.2 slots | 2 |
| SATA ports | 8 |
| USB ports (rear) | 7 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C |
| Ethernet | 2.5Gbps LAN, Intel Gigabit Ethernet |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Audio codec | SupremeFX S1220A |
| Release year unverified | 2019 |
