ASUS

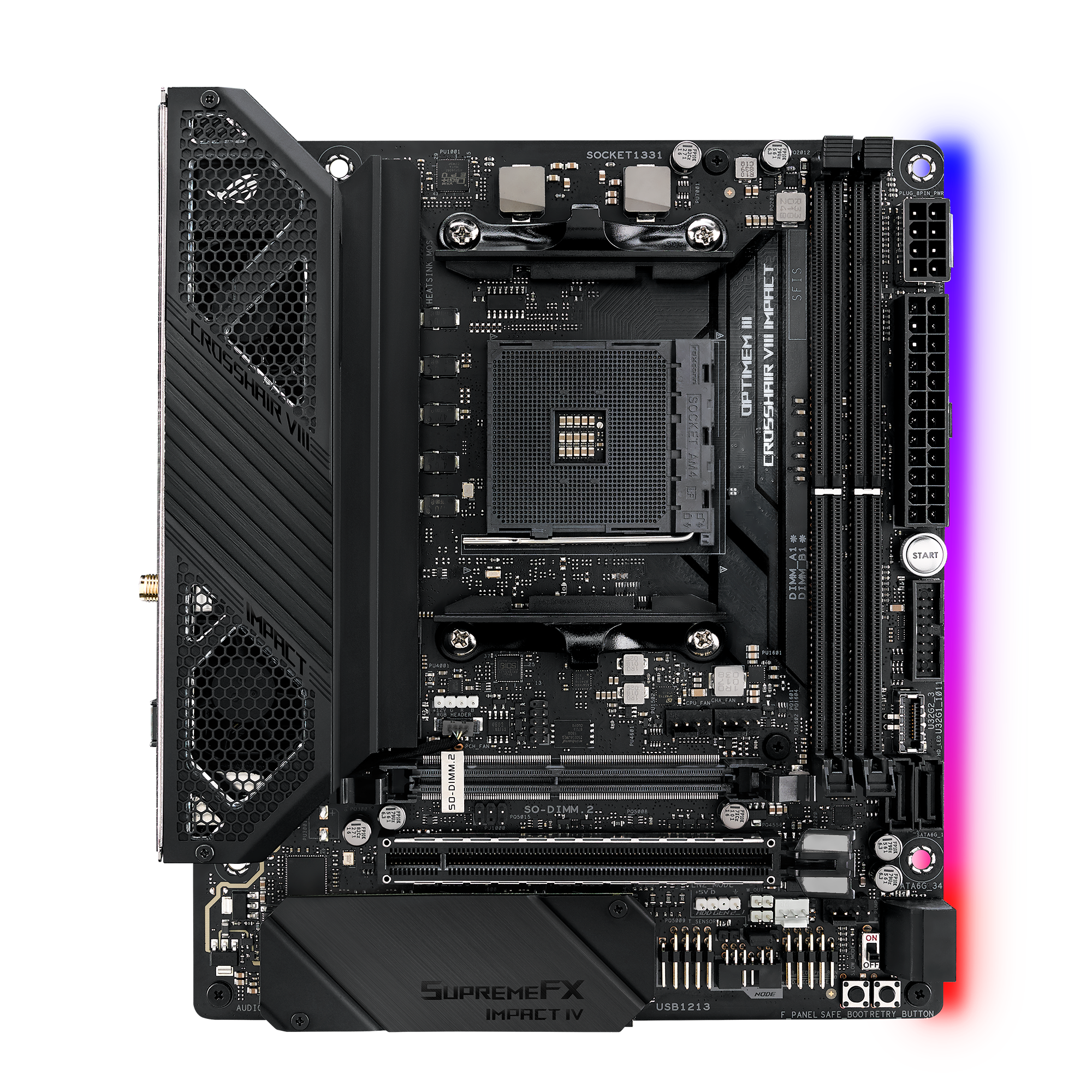

ROG Crosshair VIII Impact
The ROG Crosshair VIII Impact is a Mini-DTX motherboard with AMD X570 chipset, designed for 3rd Gen AMD Ryzen CPUs.
The ROG Crosshair VIII Impact is a Mini-DTX motherboard from ASUS, featuring the AMD X570 chipset and an AM4 socket. It supports up to 64 GB of DDR4 memory across two slots in dual-channel configuration. The board offers one PCIe 4.0 x16 slot and two PCIe 3.0 x16 slots, along with two M.2 slots (one via SO-DIMM.2) and four SATA ports. Rear I/O includes two USB 3.2 Gen 1 and six USB 3.2 Gen 2 ports. Networking is handled by an Intel I211-AT Ethernet controller and Intel Wi-Fi 6 AX200. Audio is provided by a ROG SupremeFX 8-Channel High Definition Audio CODEC. The board is the first Impact in the Crosshair lineup and features an active finned heatsink.
Specifications
| Chipset | AMD X570 |
|---|---|
| CPU socket | AM4 |
| Form factor | Mini-DTX |
| Memory slots | 2 |
| Memory type | DDR4 |
| Max memory | 64 GB |
| Memory channels | 2 |
| PCIe slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x16 |
| M.2 slots | 2 |
| SATA ports | 4 |
| USB ports (rear) | 2 x USB 3.2 Gen 1, 6 x USB 3.2 Gen 2 |
| Ethernet | Intel I211-AT |
| Wi-Fi | Intel Wi-Fi 6 AX200 |
| Audio codec | ROG SupremeFX 8-Channel High Definition Audio CODEC |
| Notes | First Impact in Crosshair lineup; designed for 3rd Gen AMD Ryzen CPUs; active finned heatsink; SO-DIMM.2 for M.2 |
